Logging systems for stunning parameters

Registrations of the relevant stunning parameters according to the specifications of directive 1099/2009/EC

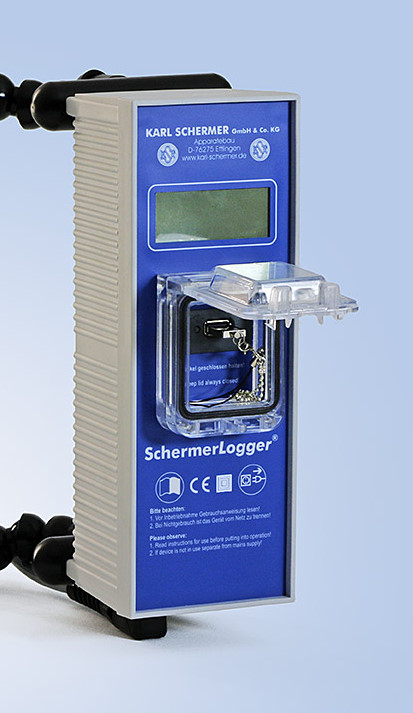

Data registration unit SchermerLogger

  • Recording and display notification of stunning amperage, stunning voltage, frequency, quantity and correct/incorrect-monitoring
  • Optical and acoustical signal if values fall below limits
  • Easy handling, all required programs are installed on the USB flash drive
  • No installation on a PC necessary
  • German, English or French operator guidance and HELP-function
  • Automatic START function available
  • Storage of the stunning parameters on the USB flash drive
  • Evaluation and documentation as pdf-file or with integrated export function to your merchandise management system at the PC
  • Optical and acoustical signal when reaching minimum stunning time
  • Limits for minimum stunning current and minimum stunning time can be set on o PC according to national regulations
  • Input voltage 230 V or 110/115 V
  • Dimensions 90 x 280 x 80 mm (WxHxD)
  • Weight 1.5 kg
  • Special accessory: radio-controlled external signals


Measuring and recording unit MRE

  • Monitoring of stunning current and minimum stun time in compliance with the specifications of Council Regulation on the protection of animals at the time of killing
  • Error display on the device
  • Log output to external PC (not part of the scope of delivery)
  • Error statistics
  • Weight 5.0 kg
  • Input voltage 230 V
  • Dimensions 330 x 230 x 190 mm (WxHxD)
  • Accessories: data cable and power amplifier


Manual SchermerLogger (11/2017)
Further operating instructions and technical descriptions can be found in our download area.
